Description
What this door seal fixes on a washing machine:
- water leaking from the bottom of the door during the wash or spin
- black mould or a split in the rubber lip that will not clean off
- a musty smell or grey marks left on washing
Fits: WH1060S1 (92284-A), WH1060SG1 (92290-A), WH1160F2 (93328-A), WH1160S1 (92285-A). Check the model number on the sticker inside the door or on the back before ordering.
Replace it (45 to 90 minutes):
- Unplug the machine and prise off the outer spring clamp with a flat screwdriver.
- Remove the top panel and detergent drawer so you can reach the inner clamp, then pull the old seal off the tub lip.
- Seat the new seal on the tub first, drain holes at the bottom, then fold it onto the front panel and refit both clamps.
- Run a short rinse cycle empty and check for drips before you load it.
Guide: Washing Machine Door Seal Replacement — Complete Guide (Australia)
About This Part

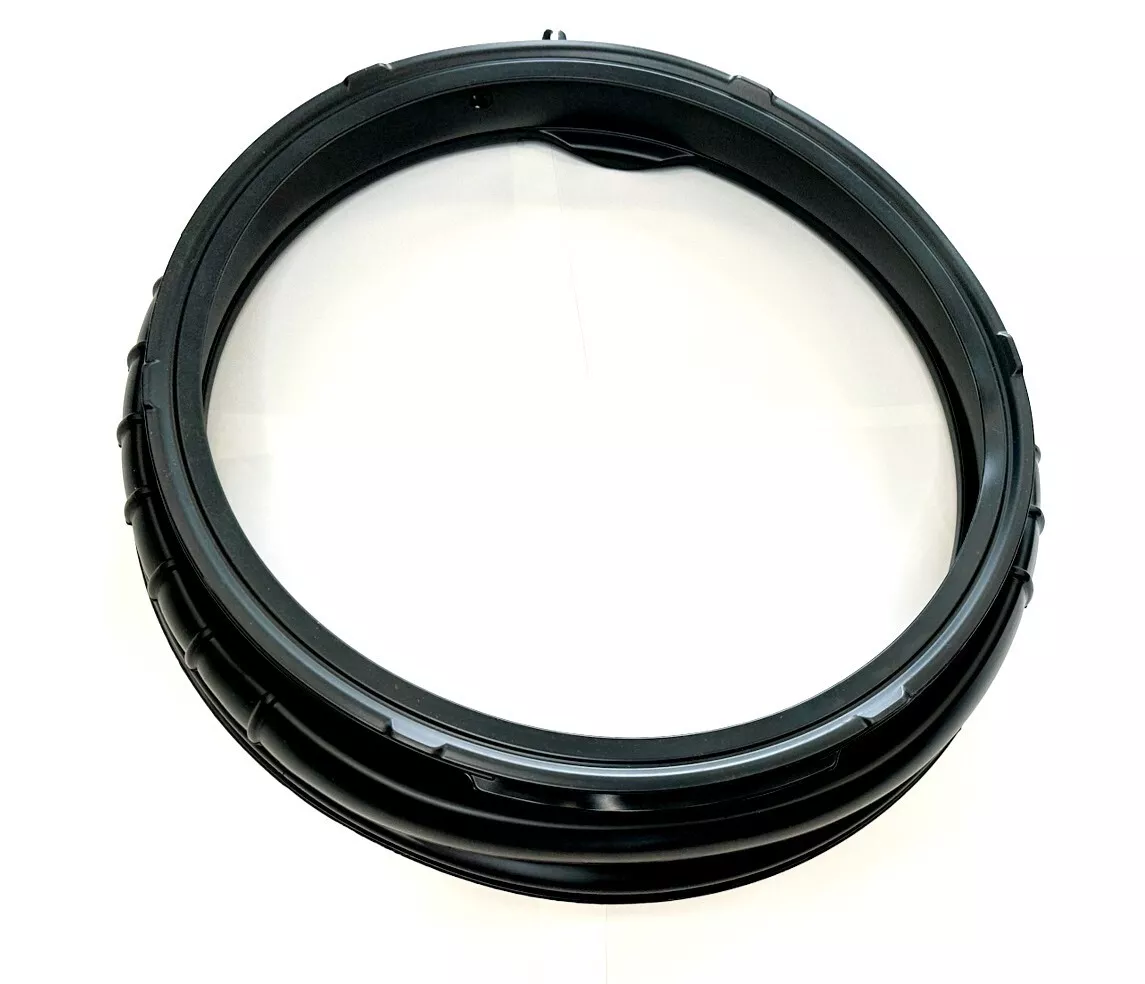

Fisher & Paykel front load washing machine door seal, part number H0020300940T, for the WH1060 and WH1160 series. The gasket bridges the outer tub and the cabinet opening; splits, perished folds or embedded mould all end the same way, with water on the floor in front of the machine mid-cycle.
Fits models: WH1060S1 (92284-A), WH1060SG1 (92290-A), WH1160F2 (93328-A), WH1160S1 (92285-A).
Clean the tub flange before fitting so the new seal seats evenly under its retaining band.
The bracketed numbers are Fisher & Paykel product codes; either the model or the product code from the door sticker can be used to confirm the match. Note that the closely named WH1060P and WH1260 machines use different seals with their own listings, so check the exact suffix on your sticker before ordering.
- In stock in Sydney — order before 12pm AEST on a business day and it ships the same day
- $10.60 flat-rate delivery Australia-wide, typically 2–7 business days
- 12-month warranty on every part we sell
Specifications
| Part Type | Door Seal |
|---|---|
| Fits Brand | Fisher & Paykel |
| Appliance | Washing Machine |
| Part Numbers | H0020300940T |
| Condition | Brand new |
| Warranty | 12 months |
Signs You Need This Part
- Water on the floor mid-cycle
- Musty smell or mould on the seal
- Black marks appearing on clean loads
- Visible splits, tears or perished rubber
What’s In the Box
- 1 × Fisher & Paykel door seal (H0020300940T)
Compatible Models
Fits 4 models across 1 series:
- WH: WH1060S1, WH1060SG1, WH1160F2, WH1160S1
This door seal fits the models listed above – find your model number on the appliance’s rating sticker and match it exactly against the list. A part-number match is the quickest confirmation. Model not listed? Send it via the contact form and we’ll check the correct part for you.
Frequently Asked Questions
Will this door seal fit my Fisher & Paykel washing machine?
This door seal is Fisher & Paykel part number H0020300940T and fits the models listed on this page, including WH1060S1, WH1060SG1, WH1160F2 and WH1160S1. Find your model number on the appliance's rating sticker and match it against the list. If your model isn't listed, send us the model number and we'll check the correct part before you buy.
How quickly will it ship?
Same-day dispatch from our Sydney warehouse on orders placed before 12pm AEST (business days). Australia-wide delivery is $10.60 flat rate, typically 2-7 business days.
How do I replace this door seal?
Disconnect power before beginning any repair. Remove the old door seal, noting its orientation and any wiring connections. Fit the new part in the same position and reconnect. Test the appliance before completing reassembly.
